AKW Digipump M11 Kit with Tuff Form pumped waste (PGTF)

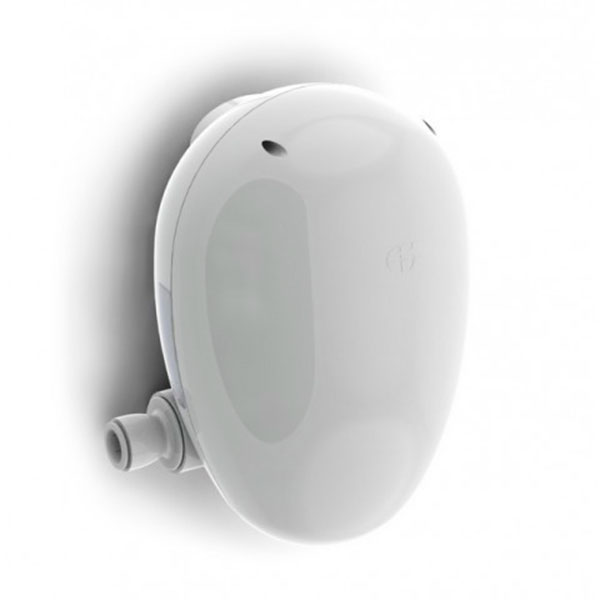

Designed and manufactured by AKW, our comprehensive range of digital shower waste pumps suit installations where gravity drainage is not achievable. These pumps will quietly but powerfully pull the water to a higher point enabling drainage for even the most unusual shower design or tray.

Product Details:

• Quiet in operation
• Compact, with pump and controller enclosed in one unit
• Easy to install
• 11 litres/min
• 15mm inlet and 22mm outlet connectors
• Non-handed unit (to fit left or right hand)
• IP45 rated
• Pump head uses 4 valves for better debris cleaning
• Pump head can be rotated to allow flow in either direction
• Maximum outlet head 1.0m (39in)
• Maximum inlet head of 0.5m (19m)
• Maximum combined head and lift 1.5m (59in)
• Supply 230v AC 50Hz 73W
• Internal T5A fuse
• Duty cycle 30 mins max on 50% duty
• Compatible with Tuff Form, Braddan, Mullen, Keppel and Multi Spec trays
• For electric showers

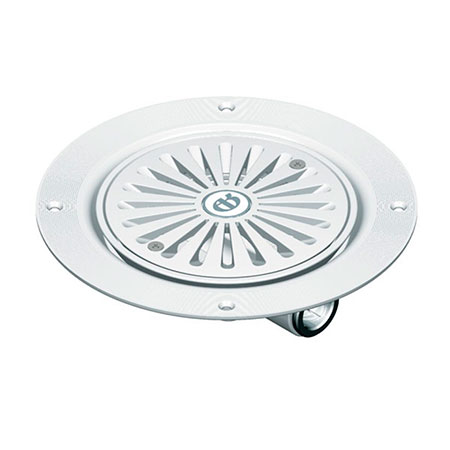

This kit includes a digipump, required fittings and the waste shown below.
