Wet Room Kit - 1500mm x 900mm - Linear Wet Floor Kit 4

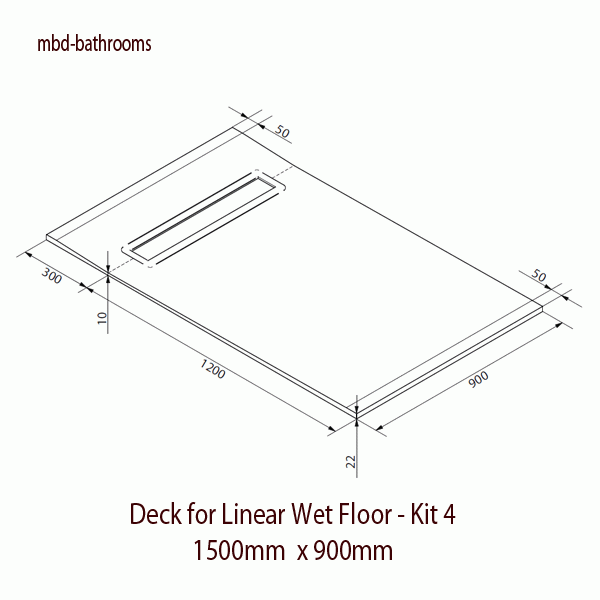

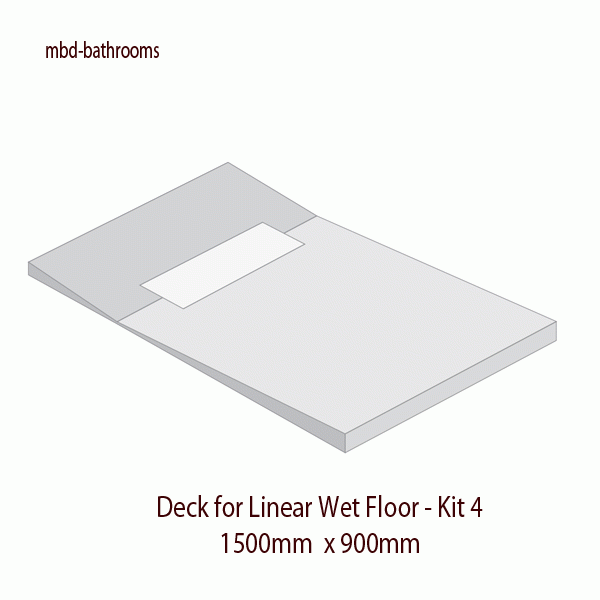

Preformed 2 Way Fall Tile Deck

• Preformed shower deck manufactured to exact standards creating a 12mm 2 way fall. Main benefits are a clean linear finish when using large tiles but suitable for all types of tiles.
• Resin filled GRP.
• Designed for timber joisted floors.
• Gives complete level access, when used with 22mm floors.
• Deck can be cut down 50mm from all sides helping to avoid joists.

The preformed deck come in a six different variations, please choose the Wet Room kit to best suit your floor. For more help please contact us.

Tilesafe

• RIW Tilesafe tanking membrane is suitable for all wet floor applications.
• Flexible and easy to install.
• Installation is complete within hours.
• Start tiling immediately.

Tilesafe Tanking System

Tilesafe is a heavy duty cold applied self-adhesive membrane, consisting of a thick rubber modified bitumen waterproof layer, incorporating a woven glass fibre mesh on one face. The Tilesafe membrane system has been developed to provide a waterproof layer beneath ceramic, porcelain, granite, marble and slate tiles.

Tilesafe membrane is equally suitable for Timber and concrete floors.

Benefits of Tilesafe

• No more water damage from commissioning leaks, shrinkage, grout failure or general misuse.
• Unlike other tile waterproofing systems, Tilesafe is flexible and the installation is complete within hours.
• Tilesafe comes in a kit, with everything you need to cover an area 5m² or 10m².
• The installation packs contain Tilesafe primer, reinforcing tape, joining compound & putty. (Extra parts can be purchased separately)
• Devimat has been tested to work with Tilesafe.
• Lifetime guarantee for floor tiles.

Linear Drain System

• 24Lt Max flow rate per minute using 1 trap with a 40mm waste pipe.
• 40Lt Max flow rate per minute using 2 traps with a 40mm waste pipe.
• 60Lt Max flow rate per minute using 3 traps with a 40mm waste pipe.
• Universal for any type of joist configuration.
• The trap is not pre-installed so you can decide where best to site avoiding joists or obstructions.
• Traps are accessible for easy cleaning and maintenance.

Please note: One trap supplied with each kit, additional traps are available to order.

Stainless Steel Drain

• 316 Marine Stainless Steel linear shower drain.
• No diagonal cuts required when fitting larger tiles.
• Can be removed for cleaning and access to traps.
• Adjustable height to suit any tile thickness.
• Stainless steel linear tile edging detail.
• Pre-cut for quick installation .
• Quality tile edge finishing detail to leave a clean finish between the shower deck and main bathroom floor.
